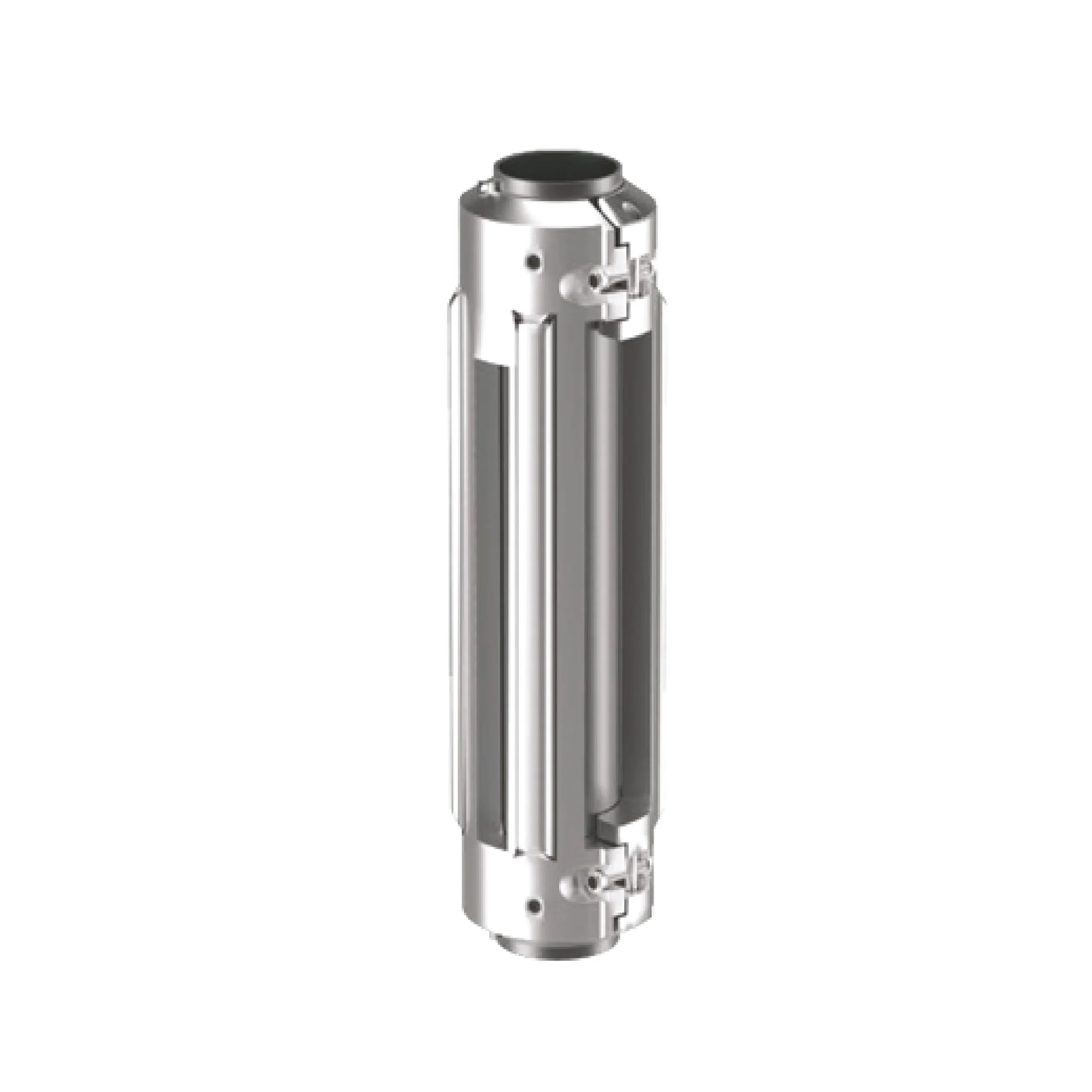

Non Ferrous Centralizer with Cable Support

This is a specialized device used in oil and gas well construction, particularly in corrosive or high-temperature environments.

Key Features:

1. Non-ferrous material (e.g., aluminum, bronze, or titanium) for corrosion resistance.
2. Centralizer function: maintains casing or tubing in the center of the wellbore.
3. Cable support: manages and secures cables, preventing damage.
4. Combined design: streamlines installation and reduces costs.

Benefits:

1. Enhanced corrosion resistance.
2. Improved cable management.
3. Reduced risk of casing damage.
4. Increased wellbore stability.
5. Simplified installation.

Applications:

1. Corrosive well environments (e.g., CO2, H2S).
2. High-temperature wells.
3. Deepwater or subsea wells.
4. Horizontal or deviated wells.
5. Wells with complex geometry.

Materials:

1. Aluminum
2. Bronze
3. Titanium

Specifications:

1. OD range: 4-20 inches (10-50 cm).
2. ID range: 2-16 inches (5-40 cm).
3. Length: variable.
4. Temperature rating: up to 400°F (204°C).
5. Pressure rating: up to 15,000 psi (103,421 kPa).

Industry Standards:

1. API (American Petroleum Institute) Spec 10D.
2. ISO (International Organization for Standardization) 10427.
3. ASME (American Society of Mechanical Engineers) B31.1.

Manufacturers:

• CASETECH
