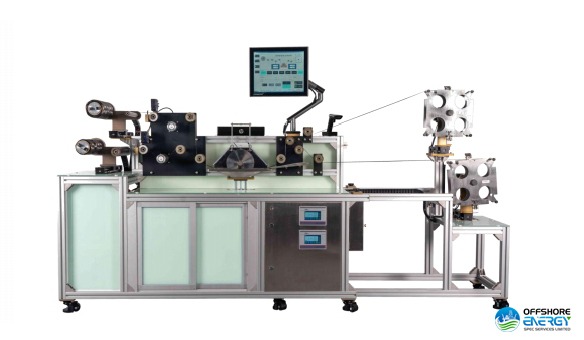

Carbon-Fibre Automatic Soaking & Winding Machine

Its a machine designed for efficient and precise processing of carbon fiber materials, particularly for aerospace, automotive, and sports equipment applications.

Key Features:

1. Automatic soaking system for precise resin application
2. Computer-controlled winding mechanism for accurate fiber placement
3. Adjustable parameters for fiber tension, speed, and orientation
4. Integrated quality control systems (vision, temperature, and pressure sensors)
5. High-speed winding capability (up to 1000 rpm)
6. Compatible with various carbon fiber types (tow, tape, fabric)

Machine Components:

1. Soaking tank with temperature control
2. Winding mandrel with adjustable diameter
3. Fiber guide system with tension control
4. Resin injection system
5. Vacuum chamber for debulking
6. Control panel with HMI (Human-Machine Interface)

Benefits:

1. Increased productivity (up to 50% reduction in labor costs)
2. Improved consistency and quality
3. Enhanced fiber placement accuracy
4. Reduced material waste
5. Improved safety (automated process minimizes human exposure to chemicals)

Applications:

1. Aerospace (aircraft, spacecraft, satellite components)
2. Automotive (car bodies, engine components)
3. Sports equipment (bicycle frames, golf clubs)
4. Medical devices (prosthetics, implants)
5. Energy storage (battery cases)

Technical Specifications:

1. Winding speed: up to 1000 rpm
2. Fiber tension: 0-50 N
3. Soaking temperature: 20-150°C
4. Resin pressure: 0-10 bar
5. Mandrel diameter: 100-1000 mm
6. Machine dimensions: 3000 x 1500 x 2000 mm
