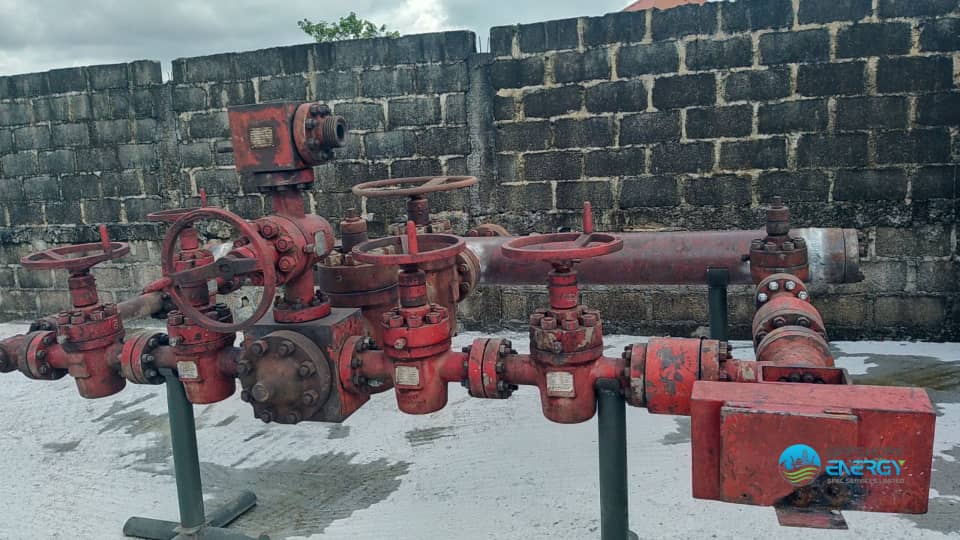

This manifold is a critical component in oil and gas drilling and production operations, used to control the flow of fluids from a well. This specific choke manifold features:
– 4 choke valves, each with a 1/16″ orifice
– 10000 psi working pressure rating
– Designed for high-pressure, high-temperature applications
Components:
1. Choke valves (4 x 1/16″)
2. Manifold body
3. Valve actuators (hydraulic or pneumatic)
4. Pressure gauges
5. Temperature sensors
6. Flow meters (optional)
Specifications:
1. Orifice size: 1/16″ (1.59 mm)
2. Working pressure: 10000 PSI (689 bar)
3. Temperature range: -20°F to 250°F (-29°C to 121°C)
4. Material: Stainless steel, carbon steel, or alloy steel
5. Connection type: Flanged, threaded, or welded
6. Valve type: Needle, ball, or cage-style choke valves
Applications:
1. Oil and gas drilling and production
2. Well testing and completion
3. Flowback operations
4. Enhanced oil recovery (EOR)
5. High-pressure, high-temperature (HPHT) wells
Industry Standards:
1. API 6A (Specification for Wellhead Equipment)
2. ASME B31.3 (Process Piping)
3. NACE MR0175 (Materials for Sour Service)
