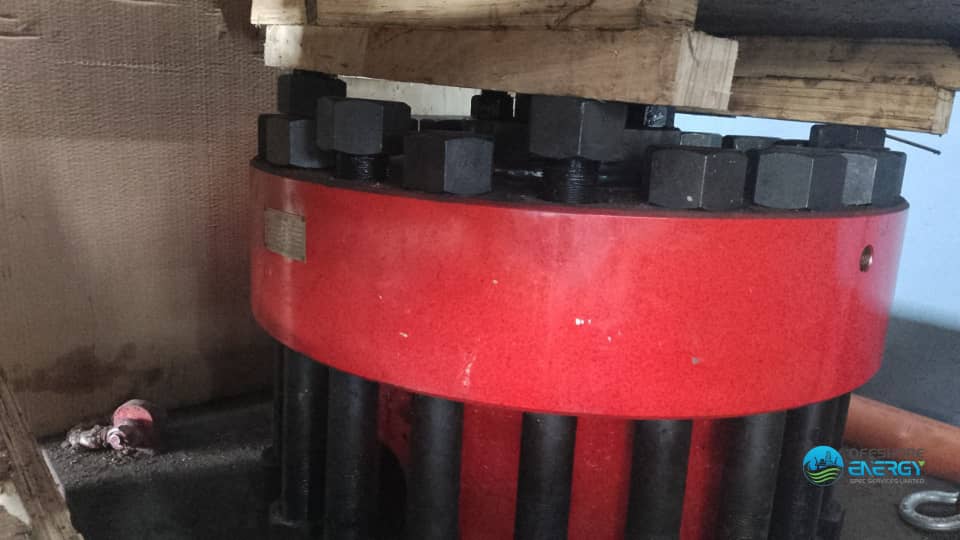

This test stump is designed for hydrostatic testing, leak testing, and pressure vessel testing in various industries. Most especially, in the oil and Gas Sector.
Specifications:
1. Size: 13 5/8″ (346 mm)
2. Pressure rating: 15,000 psi (1,034 bar)
3. Material: High-strength steel (e.g., AISI 4130, 17-4PH)
4. Connection: Flange (ASME B16.5, API 6A)
5. Temperature range: -20°F to 250°F (-29°C to 121°C)
Dimensions:
1. Length: 12″ (305 mm)
2. OD: 17″ (432 mm)
3. ID: 13 5/8″ (346 mm)
4. Flange thickness: 2 1/4″ (57 mm)
5. Weight: approximately 150 lbs (68 kg)
Industry Standards:
1. ASME B16.5 (Pipe Flanges and Flanged Fittings)
2. API 6A (Wellhead Equipment)
3. ASME B31.3 (Process Piping)
4. ISO 10423 (Wellhead Equipment)
5. NACE MR0175 (Corrosion Resistance)
Certifications:
1. API 6A certification
2. ASME B16.5 certification
3. ISO 10423 certification
4. NACE MR0175 certification
5. Material certification (e.g., MTR, mill test report)
