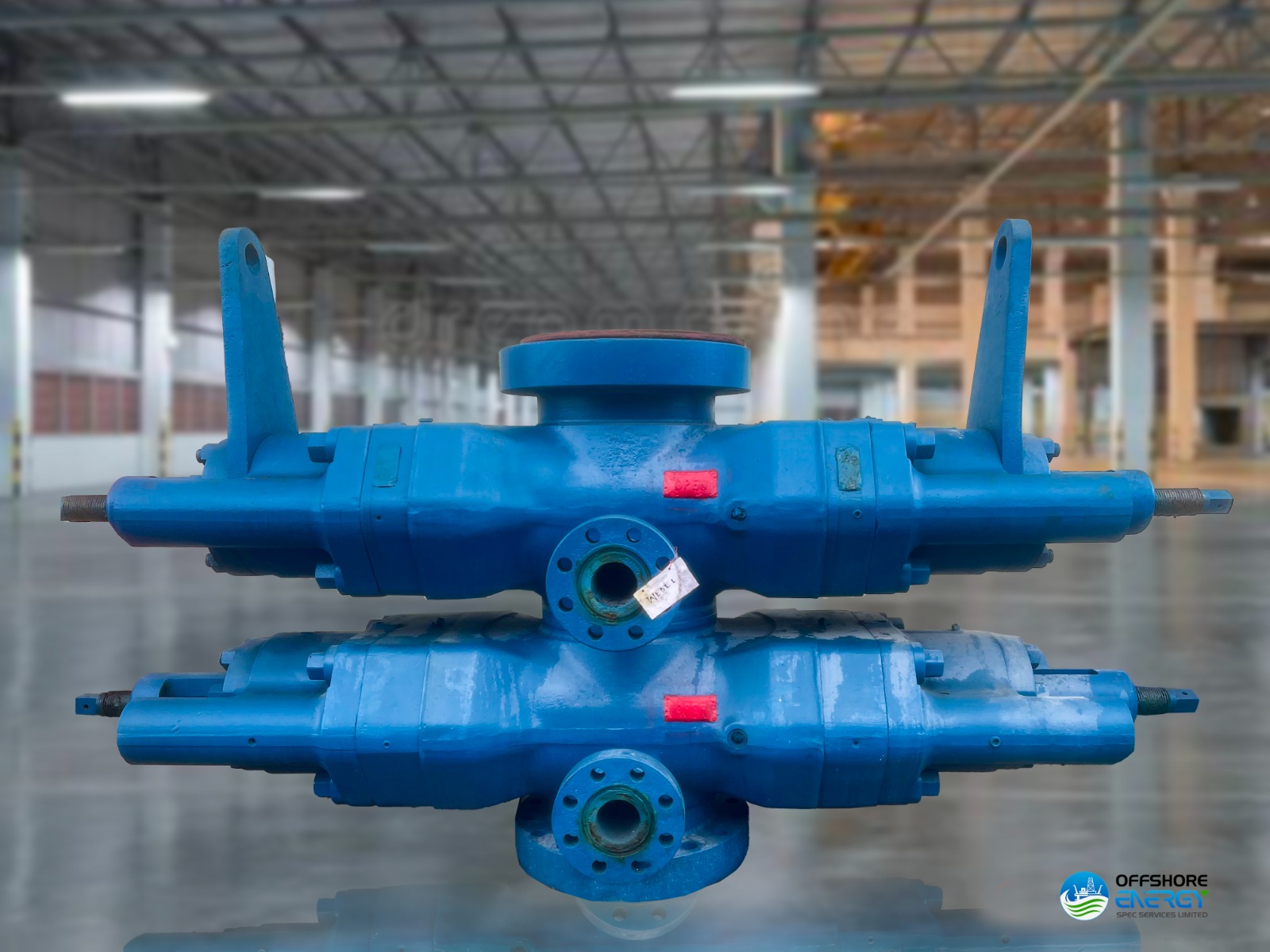

This 13 5/8″ 5000psi Double Ram BOP (DR-BOP) is a high-pressure well control device designed for drilling, completion, and workover operations. It features two rams that provide redundant sealing capability, ensuring reliable well control and safety.
General Specifications:
1. Bore Diameter: 13 5/8″ (346mm)
2. Pressure Rating: 5000psi (345bar)
3. Ram Type: Double ram configuration
4. Operation: Hydraulic or pneumatic actuation
5. Material: High-strength steel or alloy steel
Mechanical Specifications:
1. Ram Diameter: 9 5/8″ (244mm)
2. Stroke Length: 12″ (305mm)
3. Weight: Approximately 12,000lbs (5,443kg)
4. Dimensions: 40″ x 24″ x 60″ (1,016mm x 610mm x 1,524mm)
Performance Specifications:
1. Working Pressure: 0-5000psi (0-345bar)
2. Test Pressure: 7500psi (517bar)
3. Temperature Range: -20°F to 200°F (-29°C to 93°C)
4. Flow Rate: Up to 500 GPM (1892 L/min)
