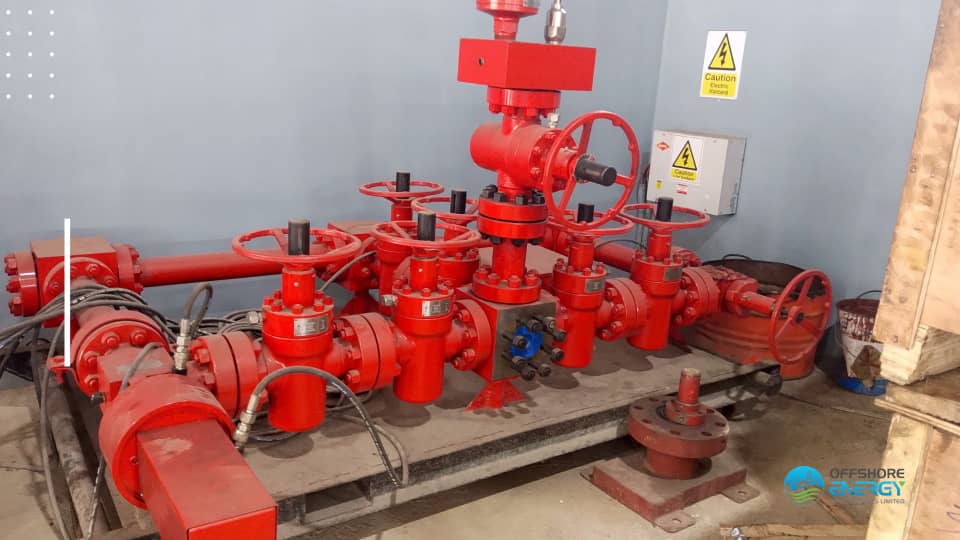

This manifold is another critical component in oil and gas well testing, used to control and regulate fluid flow. This 2 1/16″ 5,000 psi choke manifold is designed for high-pressure applications.
Specifications:
1. Size: 2 1/16″ (52 mm)
2. Pressure rating: 5,000 psi (345 bar)
3. Material: High-strength steel (e.g., AISI 4130, 17-4PH)
4. Connection: Flange (ASME B16.5, API 6A)
5. Temperature range: -20°F to 250°F (-29°C to 121°C)
Dimensions:
1. Length: 20″ (508 mm)
2. Width: 10″ (254 mm)
3. Height: 8″ (203 mm)
4. Weight: approximately 50 lbs (23 kg)
Industry Standards:
1. ASME B16.5 (Pipe Flanges and Flanged Fittings)
2. API 6A (Wellhead Equipment)
3. ASME B31.3 (Process Piping)
4. ISO 10423 (Wellhead Equipment)
5. NACE MR0175 (Corrosion Resistance)
Certifications:
1. API 6A certification
2. ASME B16.5 certification
3. ISO 10423 certification
4. NACE MR0175 certification
5. Material certification (e.g., MTR, mill test report)
Applications:
1. Well testing and completion
2. Production optimization
3. Enhanced oil recovery (EOR)
4. Gas processing and transmission
5. Petrochemical processing
